Filcom Fire International supplies, designs, installs, and maintains QCDD-certified Novec System (VSN 1230) clean agent fire suppression systems (VIKING) for server rooms, data centers, and electrical rooms across Qatar.
| Agent FK-5-1-12 | Standard NFPA 2001 | Approval QCDD Qatar | Supplier Since 2010 |
Choosing a Novec system supplier in Qatar is a compliance decision as much as a technical one. Filcom Fire has supplied and installed fire suppression systems in Qatar since 2012, working directly with consultants, MEP contractors, and facility owners to keep server rooms and electrical spaces both protected and legally compliant.

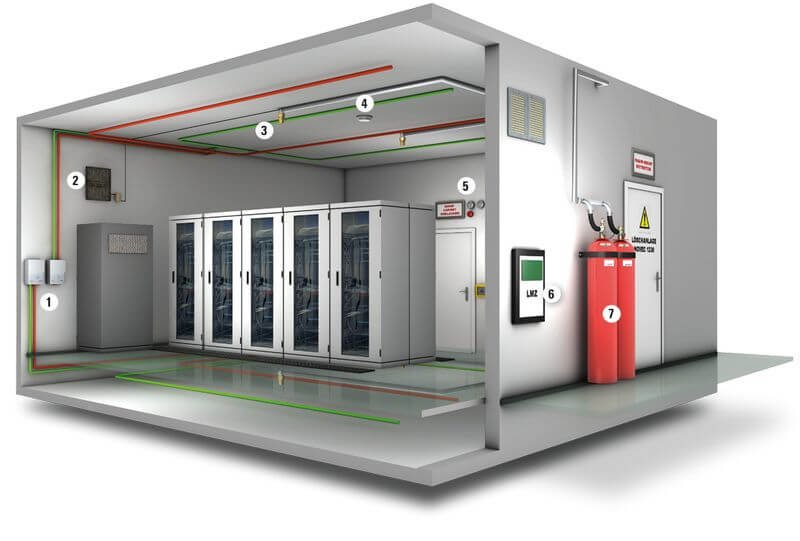

How a Novec 1230 System Responds to Fire
VSN 1230 systems store FK-5-1-12 fluid as a liquid under nitrogen pressure and release it automatically once fire is confirmed. The sequence below is what happens inside the protected room, from detection to extinguishment:
- Detection — Cross-zoned smoke or heat detectors confirm an actual fire condition, avoiding false discharge from dust or steam.
- Alarm & countdown — Audible and visual alarms warn occupants, giving time to evacuate before release.
- Discharge — Novec 1230 releases through engineered nozzles and reaches design concentration in the room within 10 seconds.
- Suppression — The agent absorbs heat from the fire, halting the combustion reaction at the molecular level.
- Clearance — Because Novec 1230 leaves no residue and is electrically non-conductive, servers and switchgear can typically be powered back up without cleanup.
Where Novec 1230 Is Used in Qatar
- Server rooms & data centers
- IDF & MDF Rooms
- Telecom equipment rooms
- Control & SCADA rooms
- Electrical switch rooms & switchgear
- Records & archive storage
- Bank vaults & secure document rooms
Single-Zone vs. Multi-Zone
A single-zone system dedicates one cylinder bank to one room. A multi-zone system shares one agent supply across several similarly sized rooms through selector valves, reducing cylinder count and floor space in buildings with multiple electrical or IT rooms.
VSN 1230 Technical Datasheet
Full specifications, cylinder sizing tables, discharge times, and installation reference data for the VSN 1230 Novec system.
A Novec system is a clean agent fire suppression system that stores FK-5 -1-12 fluid under pressure and releases it automatically when fire is detected. The agent absorbs heat and stops the fire’s combustion reaction within 10 seconds, without water, foam, or residue.
Yes. Novec 1230 has one of the largest safety margins of any clean agent and is approved for use in normally occupied spaces at standard design concentrations, provided the system is sized and installed to NFPA 2001 requirements.
Novec 1230 systems can be QCDD-approved in Qatar when supplied with correct documentation, hydraulic calculations, and installation by an approved contractor. Filcom Fire manages the full QCDD submission and certification process for every system it supplies.
Both are clean agent gases used in special hazard fire suppression. Novec 1230 has a shorter atmospheric lifetime and lower global warming potential than FM-200, while offering a comparable safety margin and discharge time, making it a preferred choice on newer projects with sustainability requirements.
QCDD and NFPA 2001 both call for at least annual inspection, weighing of cylinders to confirm agent quantity, and functional testing of detection and control panels. Filcom Fire covers this under its Annual Maintenance Contracts.
Cost depends on room volume, agent quantity, number of zones, and pipe run length, so pricing is calculated per site rather than as a fixed figure. Filcom Fire provides a firm quote after a room survey and hydraulic calculation.
Tell us your room size and project timeline. Filcom Fire Qatar will size the system and confirm QCDD requirements.
